Settings

This section defines the integration control and security settings for the User Interface Launch Service of the XDOC API to/from AIVA Documents.

Control - These settings identify the type of security to be used.

Field	Value
Enabled	Yes/No value – Defines if you are using the AIVA Doc Processing. When this setting is changed this message will appear. If No, the following are not viewable/configurable Admin -> Projects -> AIVA Info (Grouping) Monitor -> OCR send and OCR receive (Tasks)
Poll Interval (Seconds)	Number of seconds to wait between checking for a new completed submission.
Default Confidence	Default value for confidence, if not set directly on the AIVA doc mapping. Value must be between 0.00 - 100.00.

Field

Value

Enabled

Yes/No value – Defines if you are using the AIVA Doc Processing. When this setting is changed this message will appear.

If No, the following are not viewable/configurable

Admin -> Projects -> AIVA Info (Grouping)
Monitor -> OCR send and OCR receive (Tasks)

Poll Interval (Seconds)

Number of seconds to wait between checking for a new completed submission.

Default Confidence

Default value for confidence, if not set directly on the AIVA doc mapping. Value must be between 0.00 - 100.00.

Authorization - These settings are all provided by AIVA and Required.

Field	Value
Url	Authentication url, should default as: https://h2oadapter.axacoreexplore.heavywater.com/auth
Client Id	Client Id value
Secret	Secret value
Audience	Audience value
Grant Type	OAuth Grant Type, current default setting: `client_credentials`

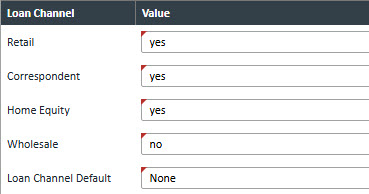

Loan Channel - This allows you to specify whether a particular loan’s documents, based on the selected loan channel, should be processed by AIVA Document Services. Options are "yes" or "no".

The Loan Channel Default setting automatically applies the selected loan channel value to the following location in the user interface:

Upload → Files → Upload → Loan Channel (dropdown)

When a user uploads a document manually, the configured default value will be preselected in the Loan Channel dropdown, reducing the need for manual input and improving efficiency.

Note: If a Loan Channel value is provided through the API Document.DocumentAdd, that value will take precedence. In such cases, the default setting is ignored.

Submission - These settings are provided by AIVA and are used for document submissions.

Field	Value
Url	Aiva supplied Submission url
Customer	Aiva supplied Customer value
Env	Aiva supplied Env value
Channel	True/False: Determines whether the loan channel value from the POST Document.DocumentAdd API is included in the Aiva request payload for document classification and extraction. True: The loan channel value is included in the Aiva request payload. False: The loan channel value is omitted from the Aiva request payload.
Callback Url	Aiva Server Callback url -- /AivaResponse
Content Url	Aiva Server Content url -- /AviaDownload
Enable Response Logging	Yes/No: Controls whether Aiva response logs are written to the `axtsvc_aiva_response_log` table. Yes: Aiva response logs are written to the `axtsvc_aiva_response_log` table. No: Aiva response logs are not written to the `axtsvc_aiva_response_log` table.
