UI Launch Services

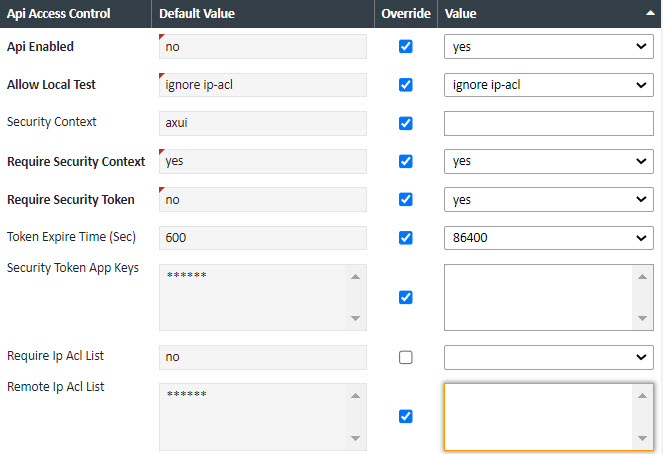

API Access Control - This section defines the integration control and security settings for the User Interface Launch Service of the XDOC API. That is, when launching the XDOC UI from an external application, such as an LOS. For more information on these settings, please contact Customer Support.
Loan Document - Servicing Document Linking
This section explains how to configure project linking when a loan number in the Servicing System or Loan Origination System (LOS) is associated with a corresponding record in the Loan Origination System (LOS) or Servicing System. The linking information is supplied by the external system (Servicing or LOS) and passed to XDOC through URL parameters. XDOC does not maintain or determine these relationships and relies entirely on the values provided by the external system.
Prerequisites
- Users must be assigned the XCONTAINERLINK permission within the Security Roles configuration.
- The Link Label is defined by the client and configured under Admin → Projects → Project Settings → Container Settings → Container Naming.
URL Parameters
To establish a link between projects, include the following URL parameters:
| Parameter | Alias | Description |
|---|---|---|
LinkProject |
LP |
The target project code to link to. |
LinkKey or LinkRef |
LK or LR |
The reference value used for linking. The value is passed directly and is not validated for existence. |
Examples
Using aliases:
&LP=LD&LK=202026 - Links to project
LD (Loan Documents) and passes 202026 as the link key.&LP=SD&LK=202026 - Links to project
SD (Servicing Documents) and passes 202026 as the link key.https://axacore.xdoc.com/xdoc/ui/xapps/viewer.aspx?ProjectId=1000&ContainerKey=202001&LP=SD&LK=202026
Using full parameter names:
&LinkProject=LD&LinkKey=202026 - Links to project
LD (Loan Documents) and passes 202026 as the link key.&LinkProject=SD&LinkKey=202026 - Links to project
SD (Servicing Documents) and passes 202026 as the link key.https://axacore.xdoc.com/xdoc/ui/xapps/viewer.aspx?ProjectId=1000&ContainerKey=202001&LinkProject=SD&LinkKey=202026

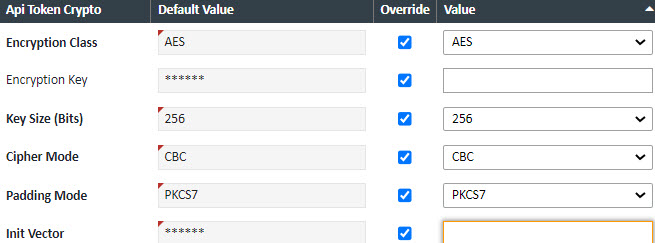

API Token Crypto - Defines the encryption for the tokens above. Configuration of these options may require assistance from Axacore Customer Support.
