User Interface
User Interface UI – Section Overview
This section focuses on the general User Interface default values for the XDOC Viewer. These values define how the Viewer behaves system‑wide unless overridden at the project level.
The default values displayed on this screen originate from the same configuration page located in the System Tab. However, each default can be modified for the current project by:
- Checking the Override checkbox
- Entering a new value in the Value field
- Clicking SAVE
This allows individual projects to customize their XDOC Viewer UI behavior without altering global system defaults.

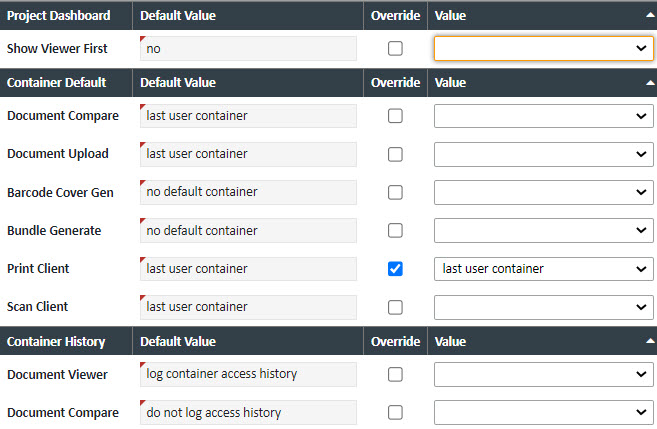

Container Defaults
Container Defaults determine which loan number (“container”) is used as the default for various XDOC functions.
Key Notes
- In XDOC terminology, “container” = "loan number".
- These defaults influence which loan number appears automatically when accessing different XDOC features.
- The “Use Last Container” setting selects the most recent loan number the user worked with in XDOC.
- This setting is only applied if the corresponding feature is enabled in the integration configuration.
| Field | Description |
| Project Dashboard | |
| Show View First | When logging into XDOC directly via the web site, open the last Document Viewer the use was working in first |
| Container Default | |
| Document Compare | The default loan number that appears when using the document compare feature |
| Document Upload | The default loan number when opening the document upload feature from the dashboard |
| Barcode Cover Gen | The default loan number when clicking on the Barcode option |
| Bundle Generate | The default loan number when clicking on the Barcode option from the dashboard |
| Print Client | The default loan number when using the Print Client |
| Scan Client | The default loan number when using the Scan Client |
| Container History | |
| Document Viewer | Setting to determing whether to log history for the Document Viewer. We recommend you always log this history |
| Document Compare | Setting to determing whether to log history for the Document Compare feature |
Document Type List - These settings allow Admins to sort the Document Type drop down lists by category and then sort the document types in those categories
Document Copy and Page Copy Defaults - These settings control the Document Copy/Move and Page Copy/Move and defaults. It is recommended that you set the Doc Copy Action to "copy" and the Page Copy action to "move"

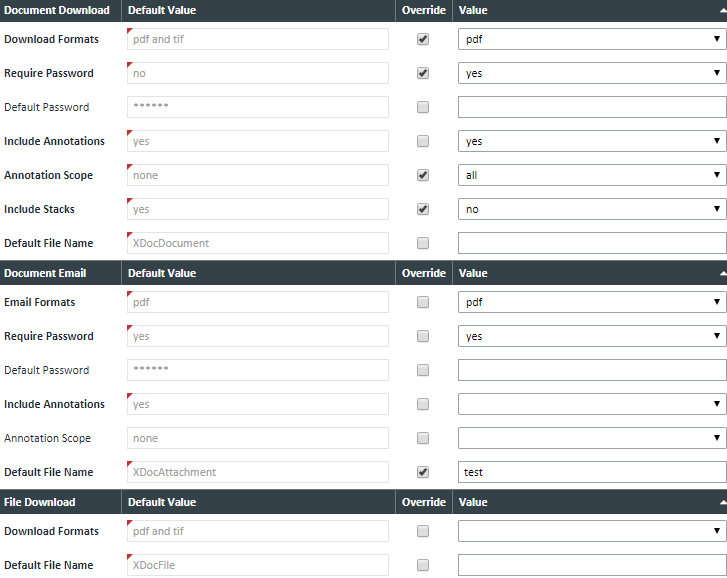

Download and Export Options - These are the default options for downloading and emailing documents in the Viewer, as well as downloading from the File Room and File Viewer
| Field | Description |
| Document Download | |
| Download Formats | Either pdf, tif, or both |
| Require Password | Require a password with downloading a document |
| Default Password | Default passsord for the document, if using a password |
| Include Annotations | Includes the ability to download annotations |
| Annotation Scope | Describes which annotations to download. Users with advanced annotation permissions will have more options |
| Include Stacks | Includes the ability to downloan an entire document stack |
| Default File Name | Default file name for the downloaded document |
| Document Email | |
| Email Formats | Only pdf is allowed at this time |
| Require Password | Require a password with downloading a document. This is always set to yes and cannot be overridden |
| Default Password | Default passsord for the document |
| Include Annotations | Includes the ability to download annotations |
| Annotation Scope | Describes which annotations to download. Users with advanced annotation permissions will have more options |
| Default File Name | Default file name for the emailed document |
| File Download | |
| Download Formats | Either pdf, tif, or both |
| Defaul File Name | Default file name for the downloaded document |

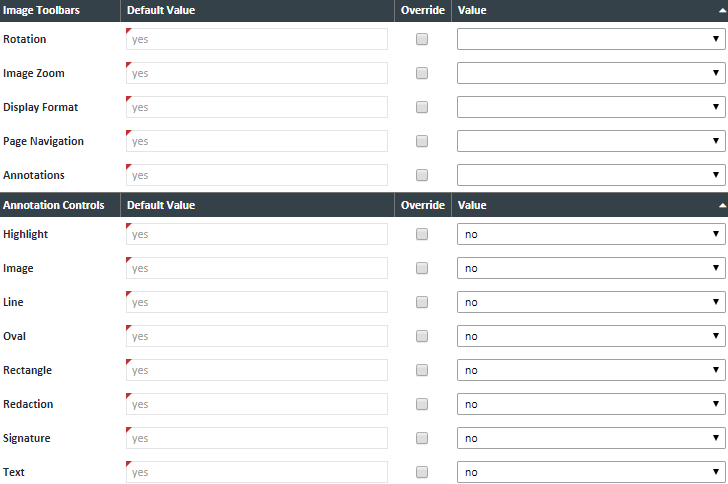

Image and Annotation Defaults - These default options determine the imaging and annotation options for the viewer. These are global options and will affect all users
| Field | Description |
|---|---|
| Image Toolbars | |
| Rotation | Yes/No to view any document rotation toolbars |
| Image Zoom | Yes/No to view the image zoom control |
| Display Format | Yes/No to view the display format control |
| Page Navigation | Yes/No to view the page navigation control |
| Annotations | Yes/No to view the annotation toolbar |
| Annotations Controls | Controls viewing of individual annotation types |
| Highlight | Yes/No to display highlight annotation icon |
| Image | Yes/No to display image annotation icon |
| Line | Yes/No to display line annotation icon |
| Oval | Yes/No to display oval annotation icon |
| Rectangle | Yes/No to display rectangle annotation icon |
| Redaction | Yes/No to display redaction annotation icon |
| Signature | Yes/No to display signature annotation icon |
| Text | Yes/No to display text annotation icon |
